IPhone Optimization Made Easy

The is no doubt that with the introduction of IPhone and IPod Touch, mobile browsing has increased dramatically:  surveys confirm that iPhone users are hard-core internet junkies. At the same time about 40% of iPhone users say the iPhone has trouble
displaying some websites they want to visit.

So what is the best way of making your EPiServer website iPhone-friendly?

Well, there are several approaches:

1. Use one of the external solutions available, some of them are listed on the epimore site.
2. Create separate IPhone-specific templates

I will introduce a third option:
Building IPhone-friendly websites using HTML, conditional CSS and jquery.

In this example, I’m using the new demo website for EPiServer CMS 6, “Alloy Technologies”. If you haven’t seen it yet, have a look at http://demo.episerver.com/.

Preparing the IPhone-specific stylesheet

By default, stylesheets apply to all media types. CSS3 recognizes several media types, including print, handheld, and screen. iPhone OS ignores print and handheld media queries because these types do not supply high-end web content. Therefore, use the screen media type query for iPhone OS.

To specify a style sheet that is just for iPhone OS without affecting other devices, use the only keyword in combination with the screen keyword in your HTML file. Older browsers ignore the only keyword and won’t read your iPhone OS style sheet. Use device-width, max-device-width, and min-device-width to describe the screen size.

For example, to specify a style sheet for iPhone and iPod touch, use an expression similar to the following:

<link media="only screen and (max-width: 480px)"
 rel="stylesheet" type="text/css"
href="~/Templates/Demo/Styles/Default/iphone.css" />

To specify a style sheet for devices other than iPhone OS, use an expression similar to the following:

<link media="screen and (min-width: 481px)"
rel="stylesheet" type="text/css"
href="~/Templates/Demo/Styles/Default/Styles.css" />

Controlling the Page Scaling

Unless you tell it otherwise, Safari on the iPhone is going to assume that your page is 980px wide. We want to format our content specifically for the smaller dimensions of the iPhone, so we must let Mobile Safari know about it by adding a viewport meta tag to the Header.ascx file:

<meta name="viewport"
  content="user-scalable=no, width=device-width" />

If you don’t set the viewport width, the page will be zoomed way out when it first loads. The viewport meta tag will be ignored by browsers other than Mobile Safari, so you can include it without worrying about the desktop version of your site.

Adding IPhone CSS rules and behavior using jQuery

When adding css rules to the iPhone.css stylesheet, I used the concepts described in this article:
http://building-iphone-apps.labs.oreilly.com/ch02.html

In short I did the following:

1. Removed flash area on front page by using display:none
2. Added a main image to display on the front page (hidden by default in styles.css)
3. Main menu and sub menu are hidden by default, but accessible by a custom menu button in the top of the page.
4. In addition, I decided to hide the quicksearch field, and instead add the Search page to the main menu.

In order to get hold of the search page url from javascript I added a http handler, SearchPageUrlHandler.ashx (see function AddSearchPageToMainMenu in javascript below). The code inside the handler is as simple as this:

public void ProcessRequest(HttpContext context)
 {
   PageData searchPage = null;
   string searchUrl = "";

   PageData startPage =
     EPiServer.DataFactory.Instance.
               GetPage(PageReference.StartPage);
   if (startPage != null)
   {
     PageReference searchPageRef =
           startPage["SearchPage"] as PageReference;
     if (
       !PageReference.IsNullOrEmpty(searchPageRef))
          searchPage =
         EPiServer.DataFactory.Instance.
                   GetPage(searchPageRef);
   }

   if(searchPage != null)
      searchUrl =
           string.Format("<a href=\"{0}\">{1}</a>",
           searchPage.LinkURL, searchPage.PageName);

   context.Response.ContentType = "text/plain";
   context.Response.Write(searchUrl);
 }

Here is my iphone.js file (please read oreilly-link above to learn about the details):

if (window.innerWidth && window.innerWidth <= 480) {
    $(document).ready(function() {
        AddSearchPageToMainMenu();
        $('#MainMenu ul').addClass('hide');
        $('#MainMenu').append(
  '<div class="leftButton"
    onclick="toggleMenu()">Menu</div>');
        $('#Functions ul').addClass('hide');
        $('.SubMenuArea ul').addClass('hide');
    });
    function toggleMenu() {
        $('#MainMenu ul').toggleClass('hide');
        $('#Functions ul').toggleClass('hide');
        $('.SubMenuArea ul').toggleClass('hide');
    }
    function AddSearchPageToMainMenu() {

      var searchLink;

      $.ajax({
          type: "GET",
          url:
   '/SearchPageUrlHandler/SearchPageUrlHandler.ashx',
          data: "{}",
          async: false,
          contentType: "text/plain; charset=utf-8",
          dataType: "html",
          success: function(result) {
              searchLink = result;
         }
        });

        if (searchLink) {
            $('#MainMenu ul').append('<li>' +
               searchLink + '</li>');
        }
    }
}

The result

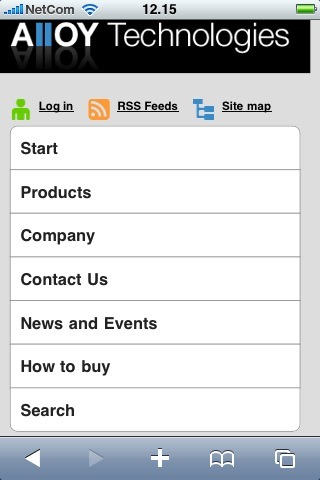

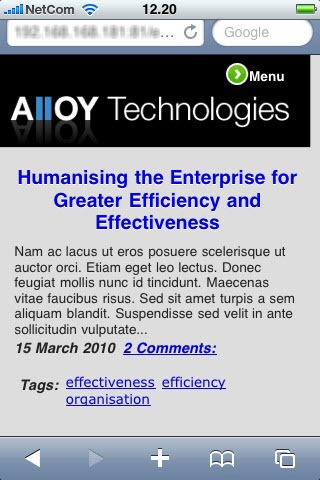

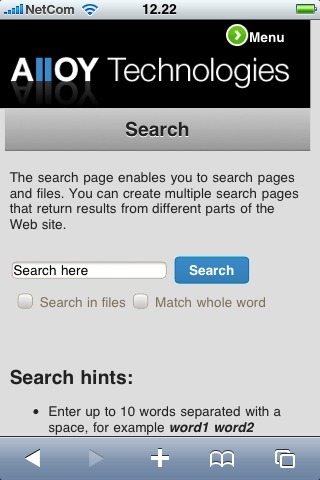

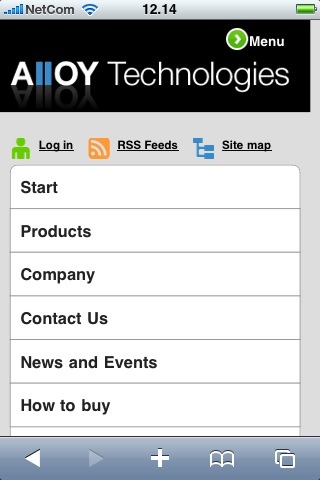

Here are some screenshots taken from my iPhone:

Want to try it (or have a closer look)?

Download the .epimodule file below and install using the “Install a Module from a compressed File” option inside the EPiServer Deployment Center.

Prerequisites for module installation

1. EPiServer CMS 6 Release (v 6.0.530.0)
2. Public templates installed
3. Demo templates installed

Resources

http://building-iphone-apps.labs.oreilly.com/
Safari web content guide
http://www.testiphone.com/
